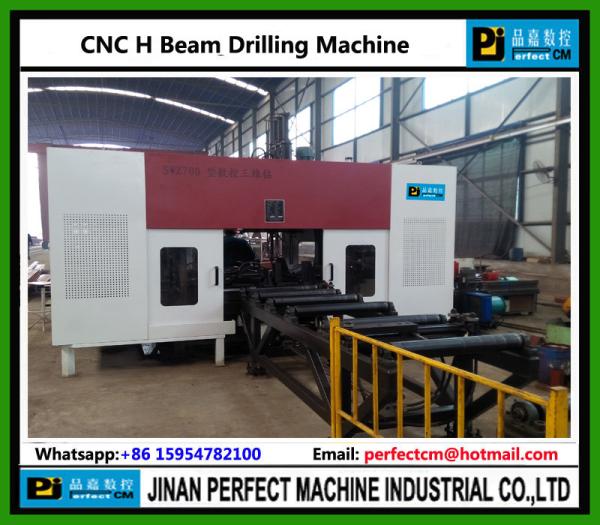

Model

SWZ1000

SWZ1250

Work Piece

Size

H-Beams Max. (Web Height×Flange Width) (mm)

Max.

1000x500

1250x600

Min.

150x75

Length (mm)

Auto Feeding

≥3000

Manual Feeding

≥690

Max. Workpiece Weight (Kg)

12000

15000

Thickness Of Web & Flange (mm)

80

Drilling Dia. (mm)

Vertical Drilling

Φ12~Φ33.5

Horizontal Drilling

Φ12~Φ26.5

Marking Function

(In Option)

No. Of Characters

36 characters

Characters Size

Φ10 mm

Imprinting Depth

0.8mm~ 1.5mm

Drilling Spindles

No. Of Spindle

One spindle on each of three sides (top,left,right) Total: 3 spindles

Rotation Speed (Stepless Speed Adjustment) (Rpm)

180~650

Spindle Motor Power (Kw)

3 x 4 kW

Max. Feeding Stroke (mm)

(Left & right):140 (Vertical): 325

Feeding Speed(mm/Min)

20~300

Movement Of Left/Right Spindle (mm)

In the direction of workpiece length:520

Above vertical base-level:30~470

Above vertical base-level:30~570

Movement Of Top Spindle (mm)

In the direction of workpiece length:520

Beyond horizontal base-level: 45~910

Beyond horizontal base-level: 45~1160

Overall Dimensions (L×W×H) (mm)

4550x3050x3520

4800x3050x3520
