    CNC Angle Drilling and Marking Line

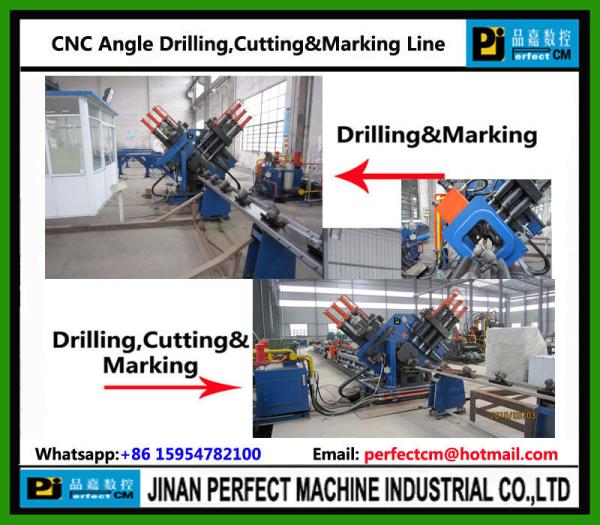

    CNC Angle Drilling and Marking Line


    APPLICABLE INDUSTRY:

    The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.


    PRODUCT COMPOSITION:

    This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, drilling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.


    SPECIFICATIONS:

    Model

    BL2532

    Angle Size(mm)

    140x140x10~250x250x32

    Marking Force(Kn)

    1030

    Max. Length Of Blank(m)

    14

    Double Blade Cutting Force(KN)

    1400, up to 200x200x20mm (optional)

    Single Blade Cutting Force (KN)

    4500, up to 200x200x20mm (optional)

    Circular Saw Cutting Speed(Mt/Min)

    80-180, up to 250x250x32mm (optional)

    Max. Length Of Finished(m)

    14

    No. Of Drill An Each Side(Piece)

    3

    No. Of Character Group(Piece)

    1

    No. Of Character In Each Character Size(Piece)

    15

    Character Side(mm)

    14×10×19

    Range Of Back Mark (mm)

    50-220 (Stepless)

    CNC Axes(Piece)

    3

    Spindle Rotation Speed(r/Min)

    180-560,Transducer Stepless Adjustment

    Feeding Speed Of Angle(m/Min)

    40

    Diameter Of Drilling(mm)

    Ф13.5~Ф40

    Stroke Of Spindle(mm)

    180

    Processing Precision

    Accordance With GB2694-81

    Programming Mode

    Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface

    Overall Dimensions (m)

    32×8.9×3.2

    Gross Weight Of Machine(Kg)

    Approx.17000

    Total Power(Kw)

    35
