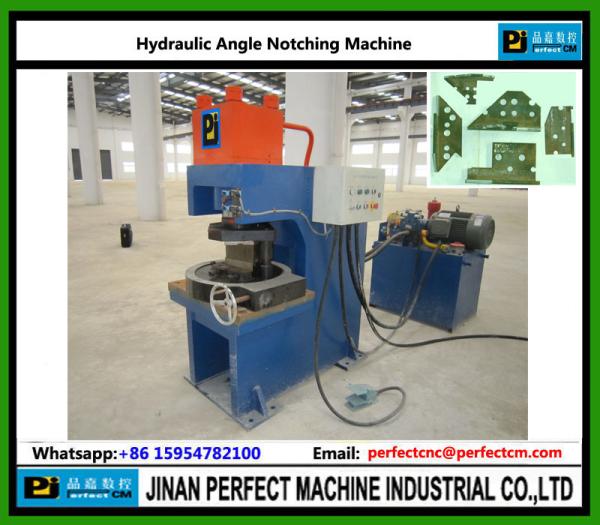

Hydraulic Angle Cutting / Notching Machine

Applicable Industry

Used for cutting corner of angle steel.

Product Feature

The machine with opening C-type structure, its cutting mould is rectangular double-blade mode. Multi-directions rotational corner cutting mould can cut out different angle of angles only need to adjust rotation die-carrier so as not to rotate the angles, so corner cutting with little error only need small working area.

SPECIFICATIONS

Model QJ140 ;QJ160; QJ200
Functions Used for cutting corner of angles in steel tower industry
Nominal pressure(kN) 800 1000 1600
Stroke of oil cylinder(mm) 50 50 50
Times of **min-1 20-25
Motor power (kW) 15 15 22
Scope of angles(mm) 40X40X3-140X140X12; 40X40X3-160X160X16; 40X40X3-200X200X20;
Rotary angles cutting mould 360manual
