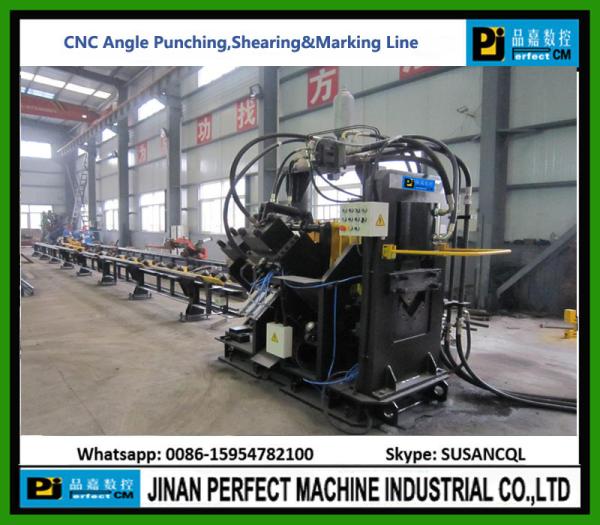

CNC Automatic Production Line For Marking, Punching/Drilling And Shearing Of Angles

Model BL2020

Technical Data:
1. Angle size: 50 x 50 x 3 -200 x 200 x 20
2. Max. Punching capability (D x T): 26 x 20
3. Punching nominal force (KN): 1000
4. Marking nominal force (KN): 630
5. Cutting nominal force (KN): 1400
6. Max. Workpiece length (m): 14
7. Adjustment range of stadim (mm): 20-170 (Stepless)
8. Punchers number in each side: 3
9. Marking groups: 4
10. Dimension of character: 14 x 10 x 20
11. Shearing mode: Double-blade cutting
12. CNC Axes number: 3
13. Infeed speed (m/min): 0-60
14. Overall dimension: 32x7x2.6
15. Net weight: 20000 kg
Technical Charecteristics:
1. Integrateded machine with mechanical, electrical and hydraulic elements;
2. Numerical controlling, three axes servo motor feeding;
3. Infinite gaugelines and no limits of the hole rows;
4. Imported electronic, hydraulic and pneumatic elements;
5. Easy programming, connectable with data files generated directly by copying the specimen;
6. Diagrammatic display of workpiece;
7. Adapted to angles with great bending deflection;
Advantages:
1. Rigid and compact structure
2. High productivity with automatic marking, punching, cutting off and stacking operations;
3. High meterial utilization with optimum pattering;
4. Low labour working strength and high precision of workpieces.
